Most tube mills buy their coil. We roll it. That single difference runs through everything else on this site: gauge tolerance, surface finish and forming behaviour are settled before the strip reaches a mill, not corrected afterwards.
More about the company01 Cold rolling & tube mills
Everything downstream depends on the coil

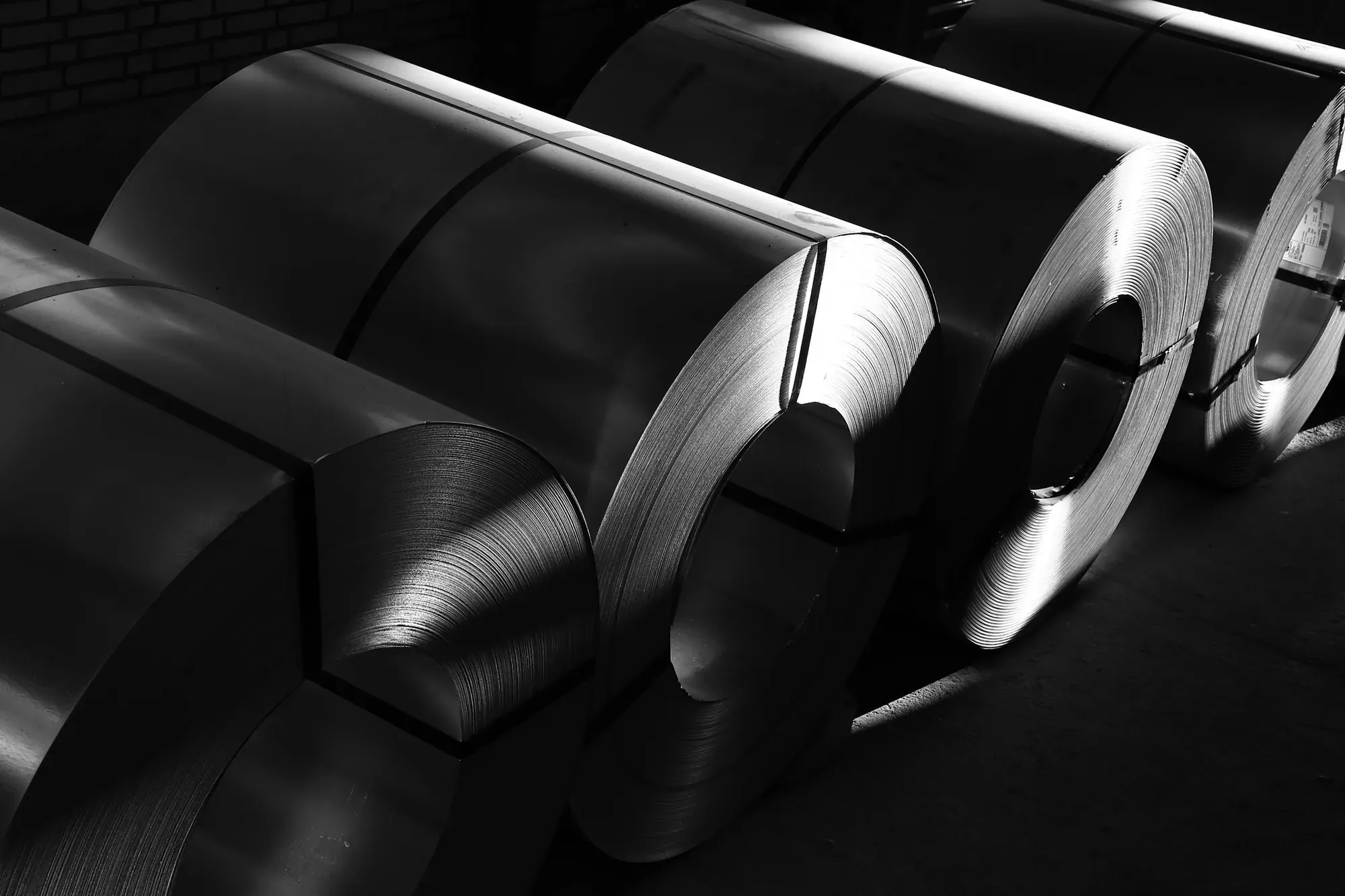

We cold roll our own coil and run it straight into the tube mills. Controlling the input is what lets us hold gauge on the output — through pipe, section, profile and wire alike.
- ISO 9001
- BS EN 10255
- ASTM A53
Coil to tube Rolled, slit and formed in-house
Sch 10–80 MS pipe schedules
L · M · H GI grades to BS EN 10255
ISO 9001 Certified quality system
The short version
Coil to consignment, in seven moves
- 01 Coil Rolled here
- 02 Slit To strip width
- 03 Cold Roll Cold reduced
- 04 Form Roll formed
- 05 Weld HF ERW
- 06 Size To tolerance
- 07 Certify Mill cert
Capability
A cold-roll house that happens to make tube
The range
What we manufacture
One mill, five product lines — pipe, tube, section, scaffold and coil — all made to published international standards.

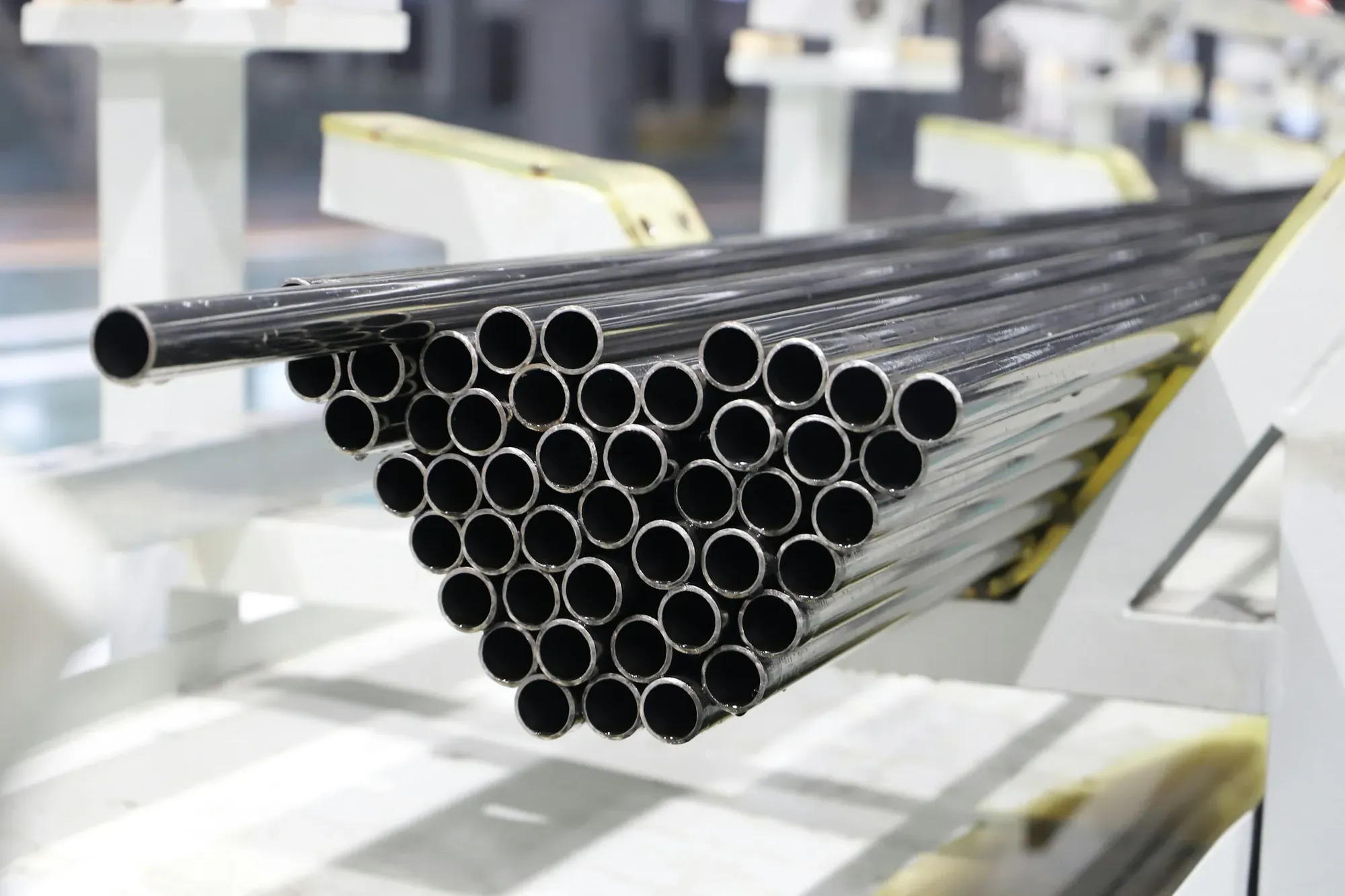

MS Pipe
Schedule 10, 20, 40 and 80 to ASTM A53, Grade A and Grade B
Electric resistance welded mild steel pipe from 1/2" to 16" diameter in wall thicknesses to 12 mm, hydro-tested and supplied against ASTM A53 and ASME B36.10M in Grade A and Grade B.
Specifications

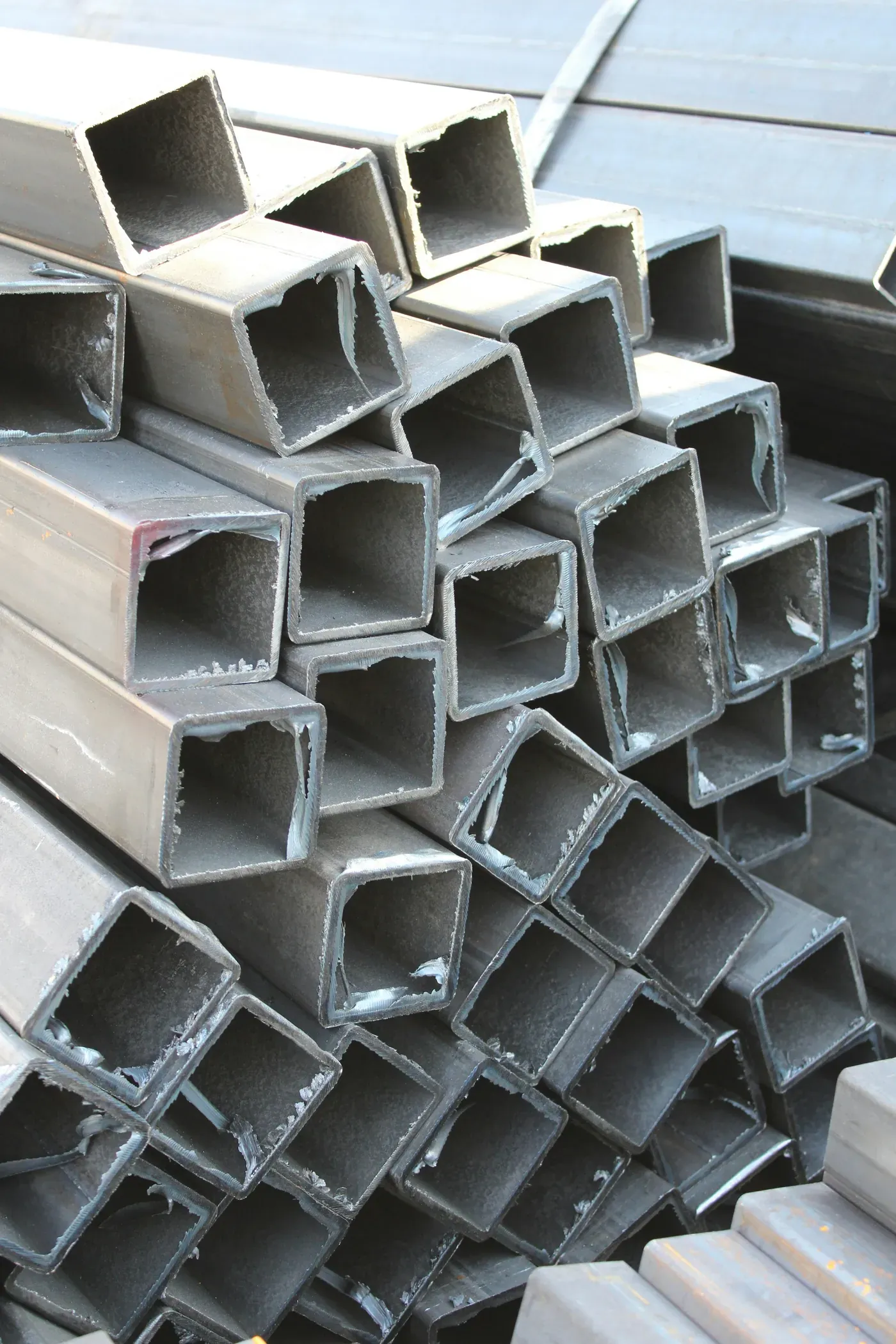

Square & Rect Pipe
Square and rectangular ERW pipe in 0.6 mm to 4.0 mm wall
Electric resistance welded square and rectangular mild steel pipe from 10 × 10 mm to 100 × 100 mm and 10 × 20 mm to 60 × 120 mm, in wall thicknesses from 0.6 mm to 4.0 mm with guaranteed square geometry.
Specifications

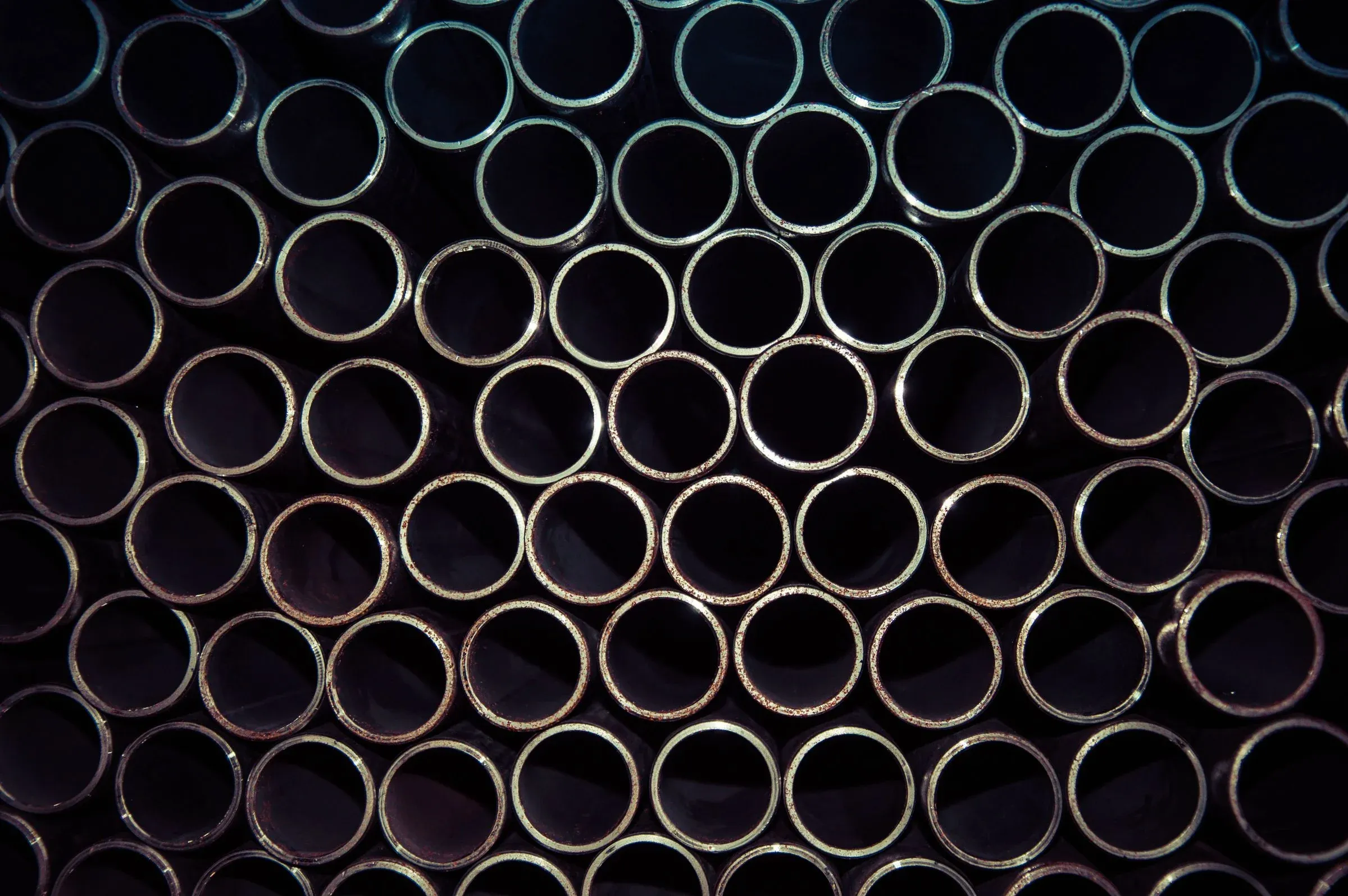

Steel Conduit
BS 4568 Class 3 and IS 9537 Part 2 conduit, plus trade weight chart
Electric resistance welded steel conduit manufactured to BS 4568 Class 3 and IS 9537 Part 2, threaded to metric standard, with trade gauge weight charts for 20 ft lengths.
Specifications
LTZD Profiles
L, T, Z and D sections for doors, windows, gates and railings
Architectural roll-formed steel profiles — L, T, Z and D sections from 0.70 mm to 1.20 mm — developed for door, window, gate and railing fabrication in residential and commercial construction.
Specifications

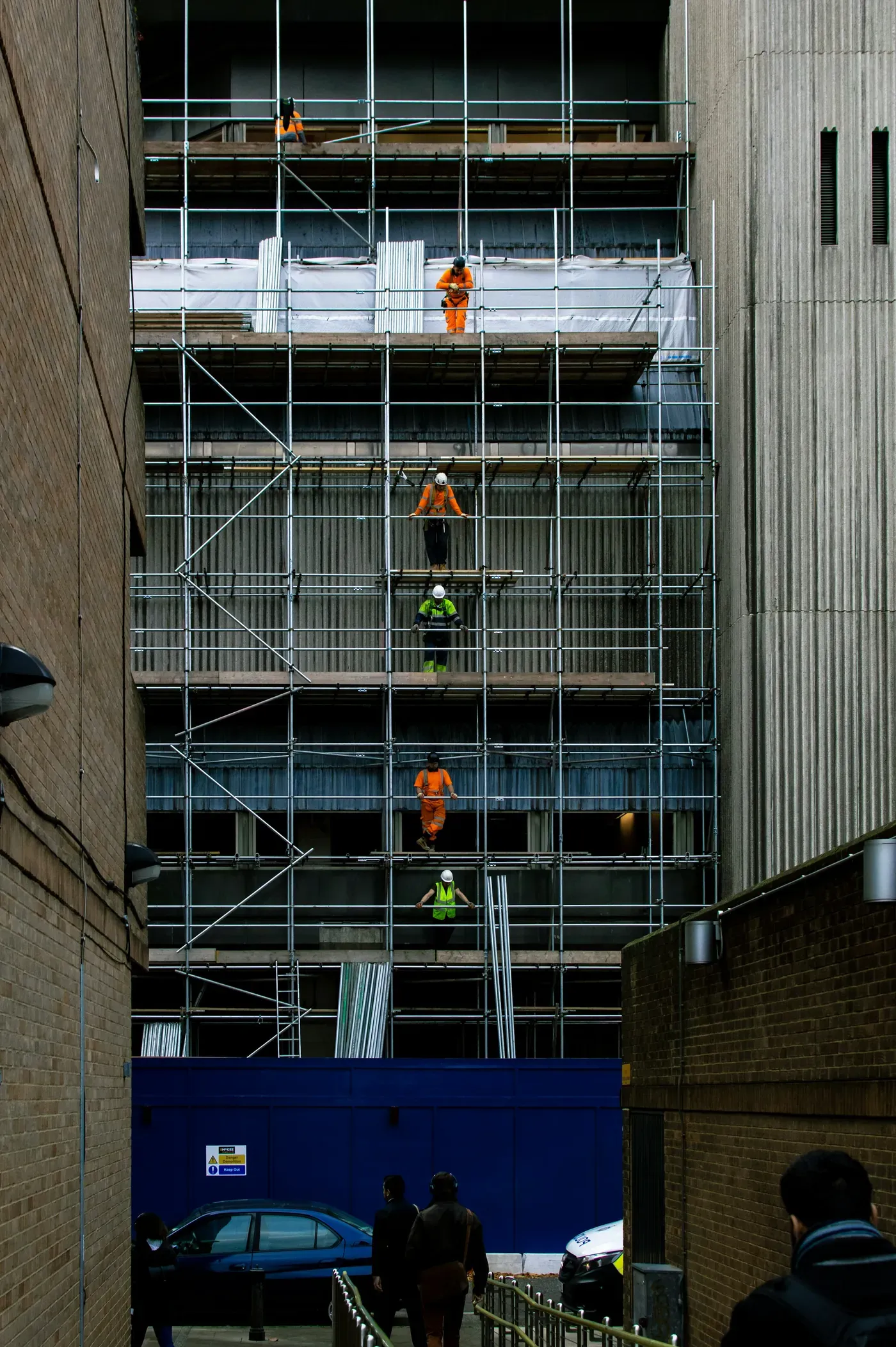

Scaffolding
Type 3 and Type 4 to BS EN 39:2001 — safety first
Tube-and-coupler scaffolding tube in 1 1/2" nominal bore (48.3 mm OD), 3.2 mm (Type 3) and 4.0 mm (Type 4) wall, manufactured from prime high-strength steel to BS EN 39:2001, with 3.0 mm light tube supplied to order.
Specifications

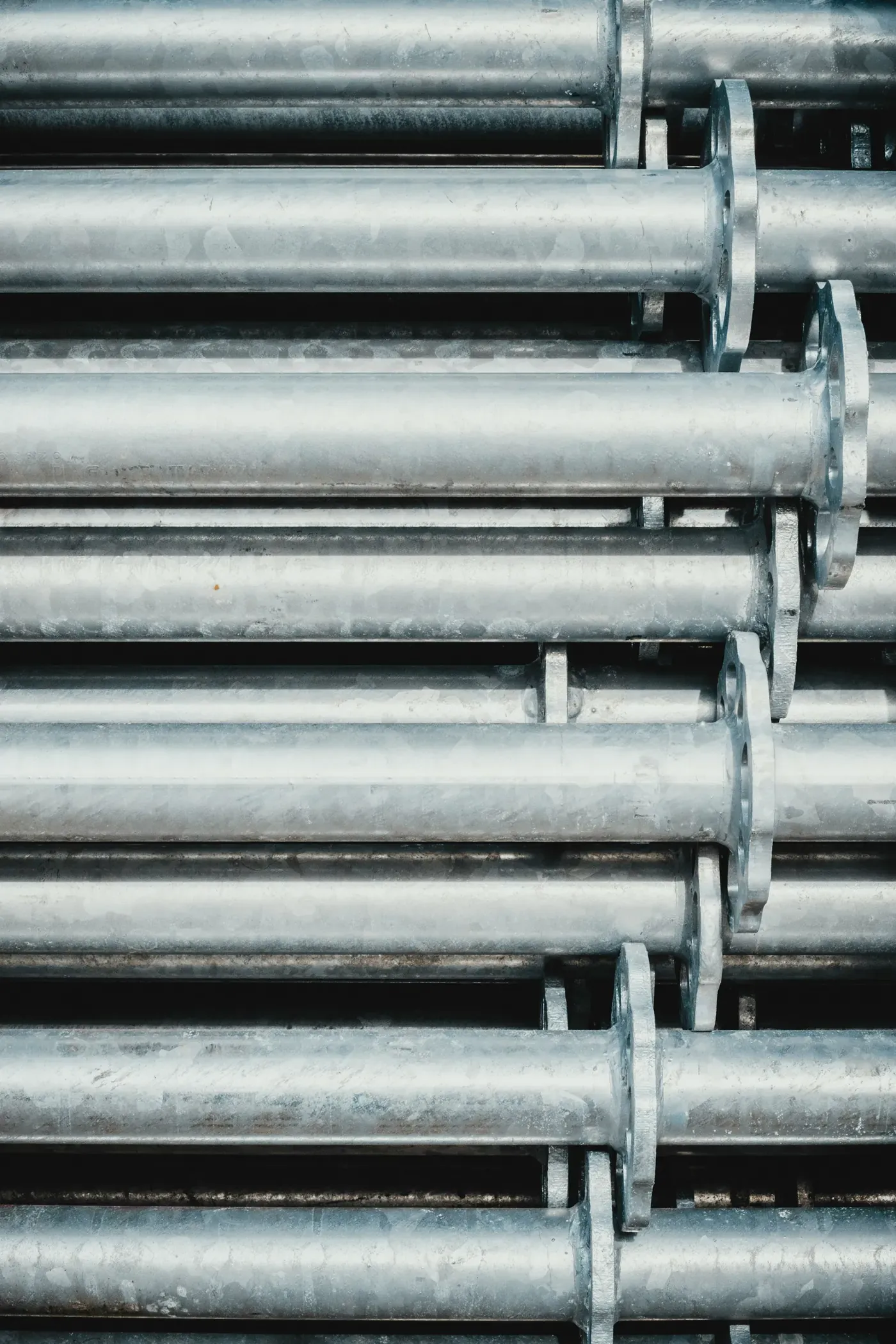

GI Pipe
Hot-dipped galvanized to BS EN 10255:2004 in Grades L, M and H
Hot-dipped galvanized iron pipe in Grades L, M and H, threaded to BS EN 10226:2004, rated to 50 bar hydro pressure and suitable for drinking water.
Specifications

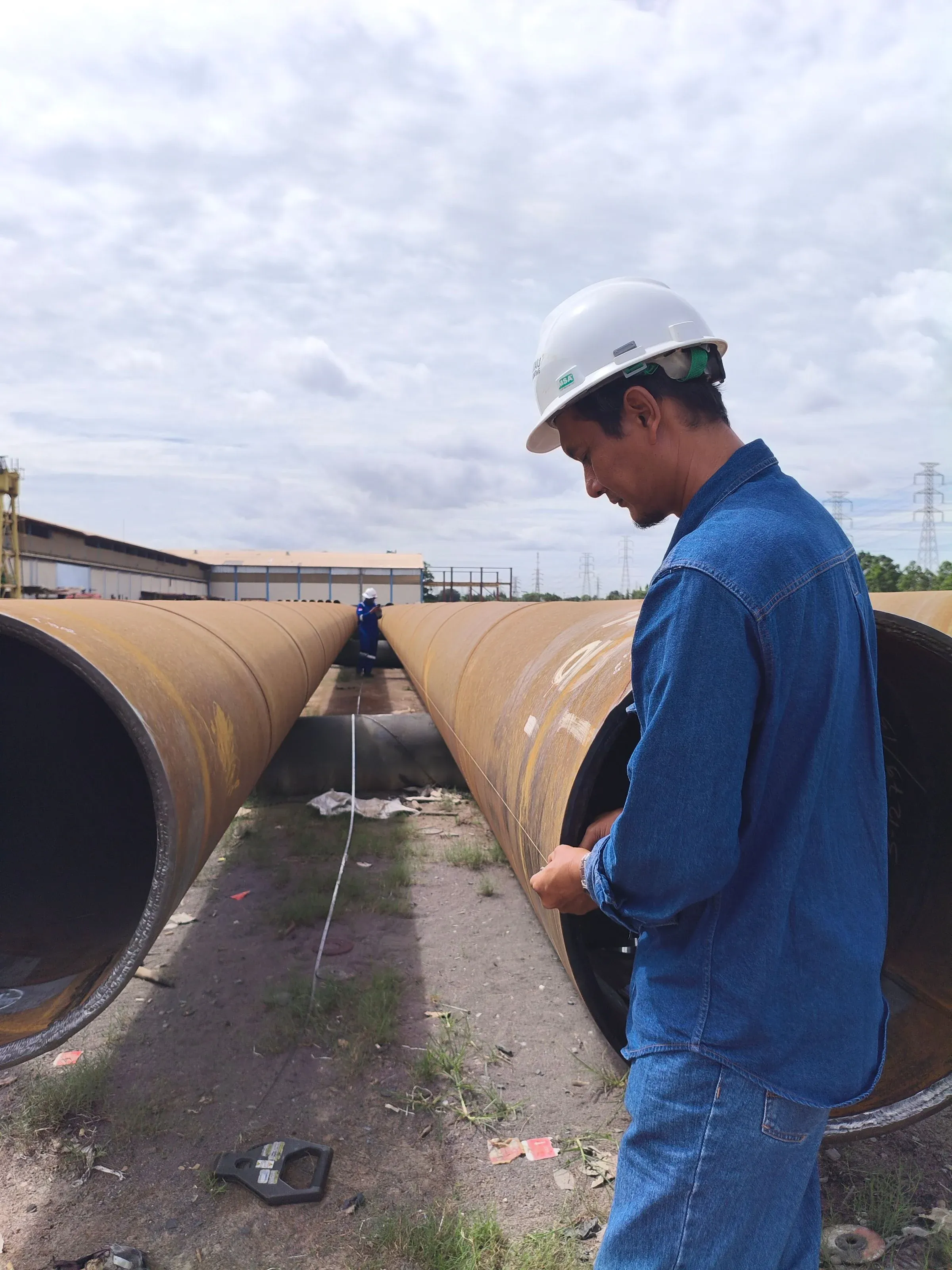

API 5L Line Pipe
PSL 1 and PSL 2, Grade B through X60, for oil, gas and water transmission
Electric resistance welded line pipe manufactured under API 5L licence in PSL 1 and PSL 2, Grade B through X60, for oil, gas and water transmission.
Specifications

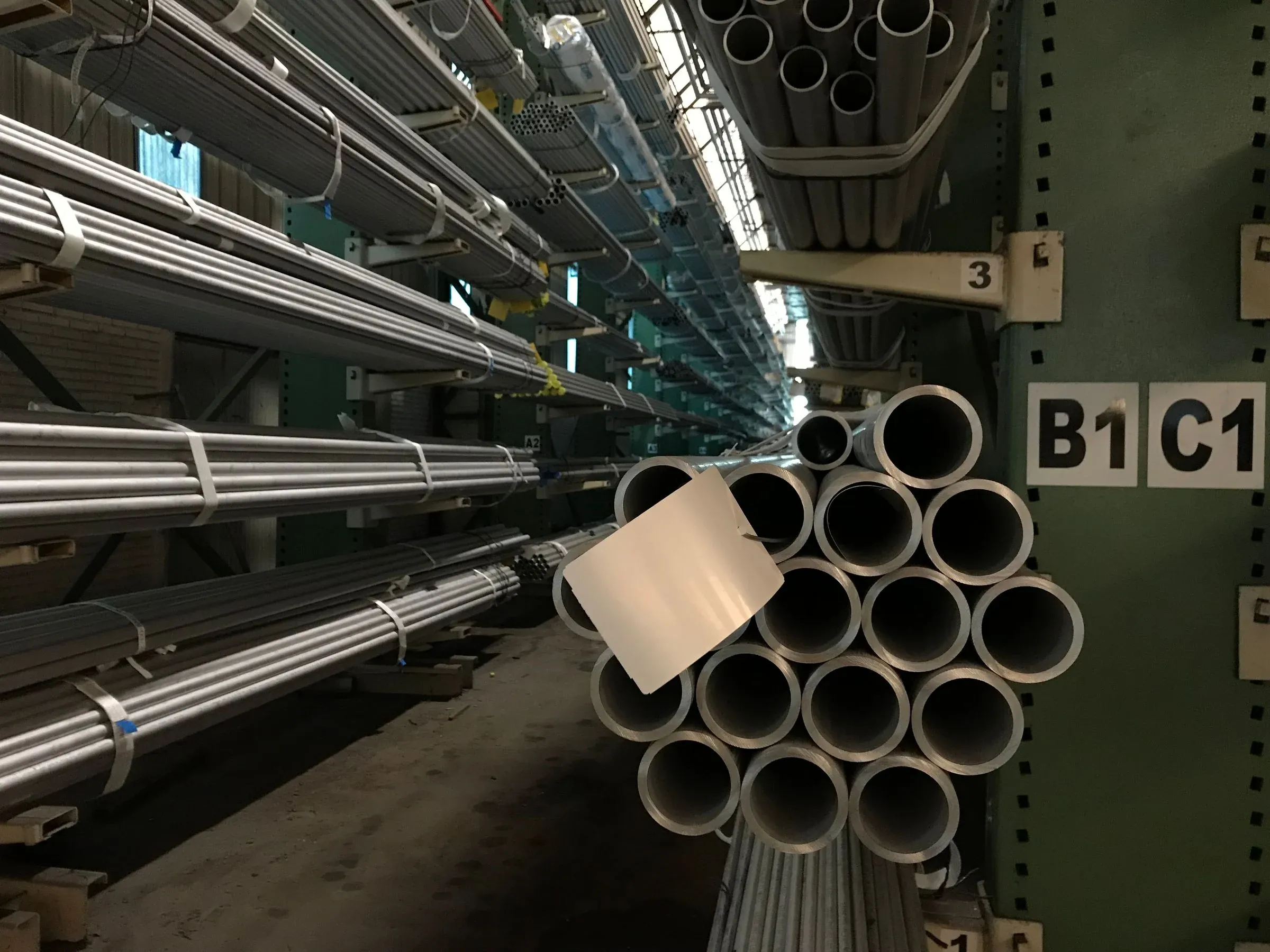

Boiler Tubes
Tube for steam, heat transfer and pressure duty
High, medium and low pressure boiler tube for steam lines, heat exchangers and pressure service — one of the tubular lines named in the company profile, made on the same plant and to the same incoming inspection as the pipe range.
Specifications

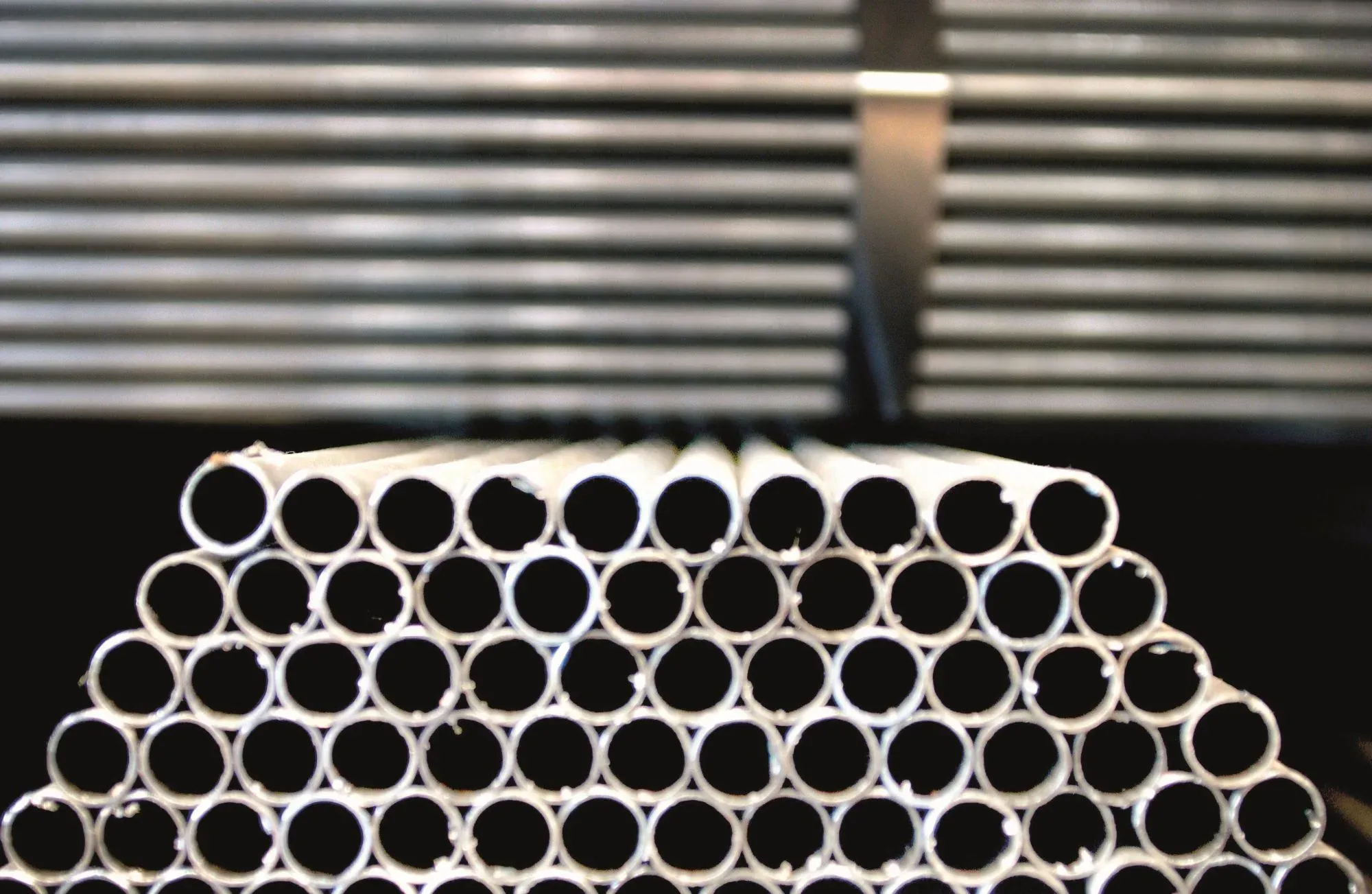

CR Precision Tubing
Round, oval and elliptical precision tube in 0.6 mm to 3.2 mm wall
Cold rolled and precision ERW steel tube in round, oval and elliptical sections, 0.6 mm to 3.2 mm wall, made to BS 1717, BS EN 10305-3 and ASTM A513, finished for plating, bending and drawing.
Specifications

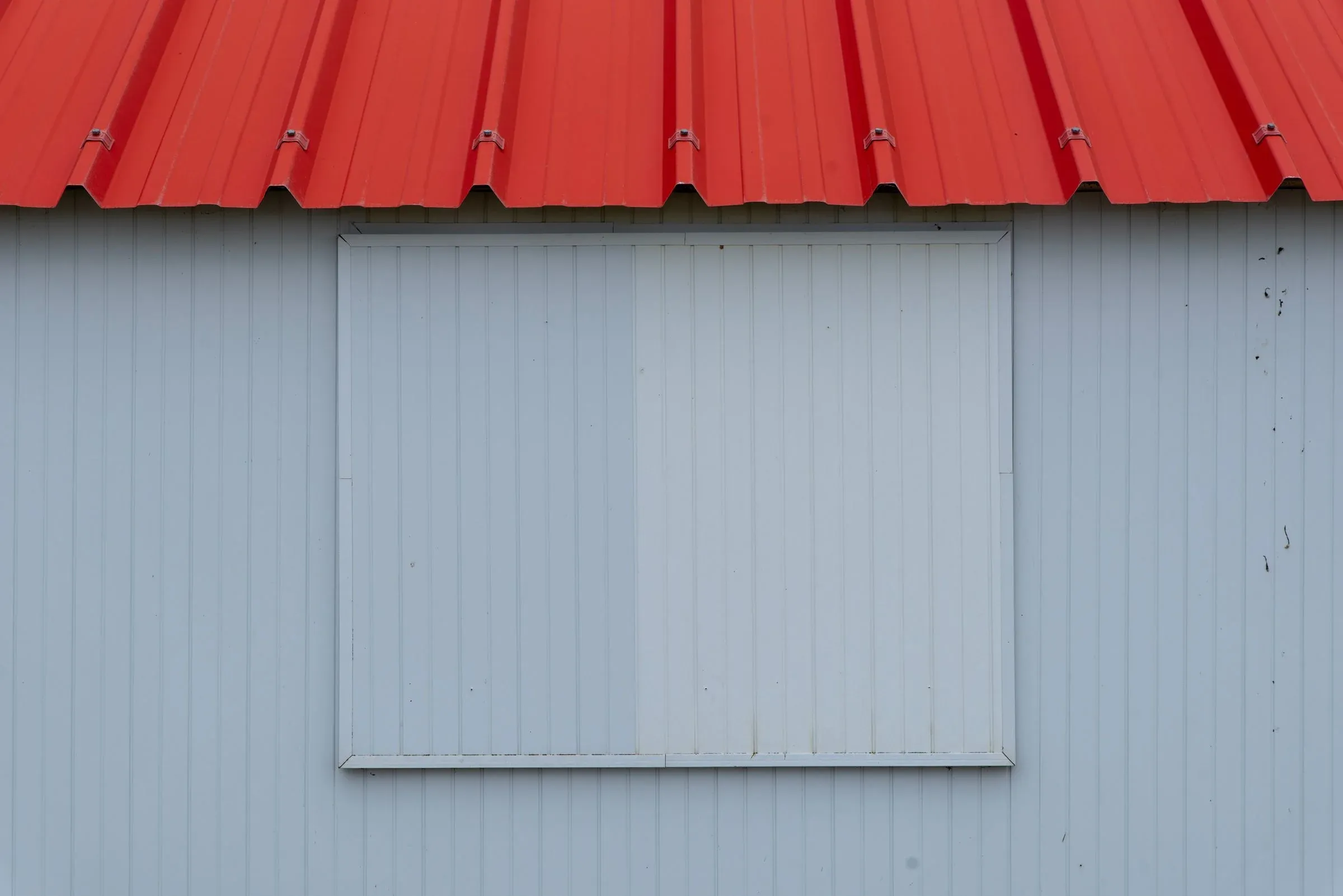

Sheet Profiles
Plain, galvanized and colour-coated sheet, flat or roll-formed
Mild steel, galvanized and pre-painted sheet in coil and cut length, supplied flat or roll-formed into corrugated, trapezoidal and tile roofing profiles.
Specifications

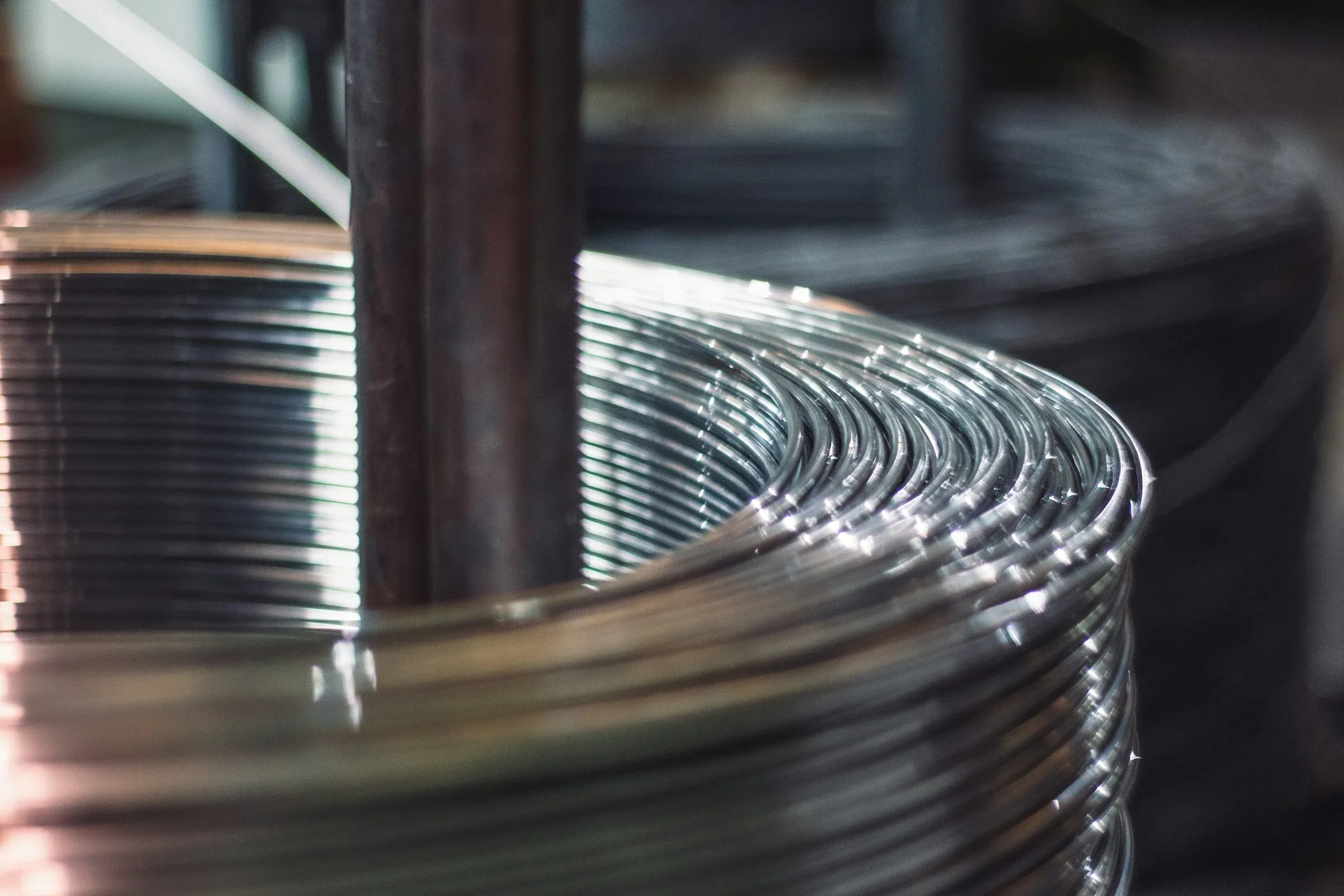

Cold Drawn Wire
Cold drawn mild steel wire, 2 to 24 SWG, hard drawn or annealed
Cold drawn mild steel wire in twenty-three gauges from 2 to 24 SWG — 7.01 mm down to 0.56 mm — hard drawn, annealed or galvanized, supplied in coil for binding, mesh, fencing, nails, fasteners, springs and general fabrication.
Specifications

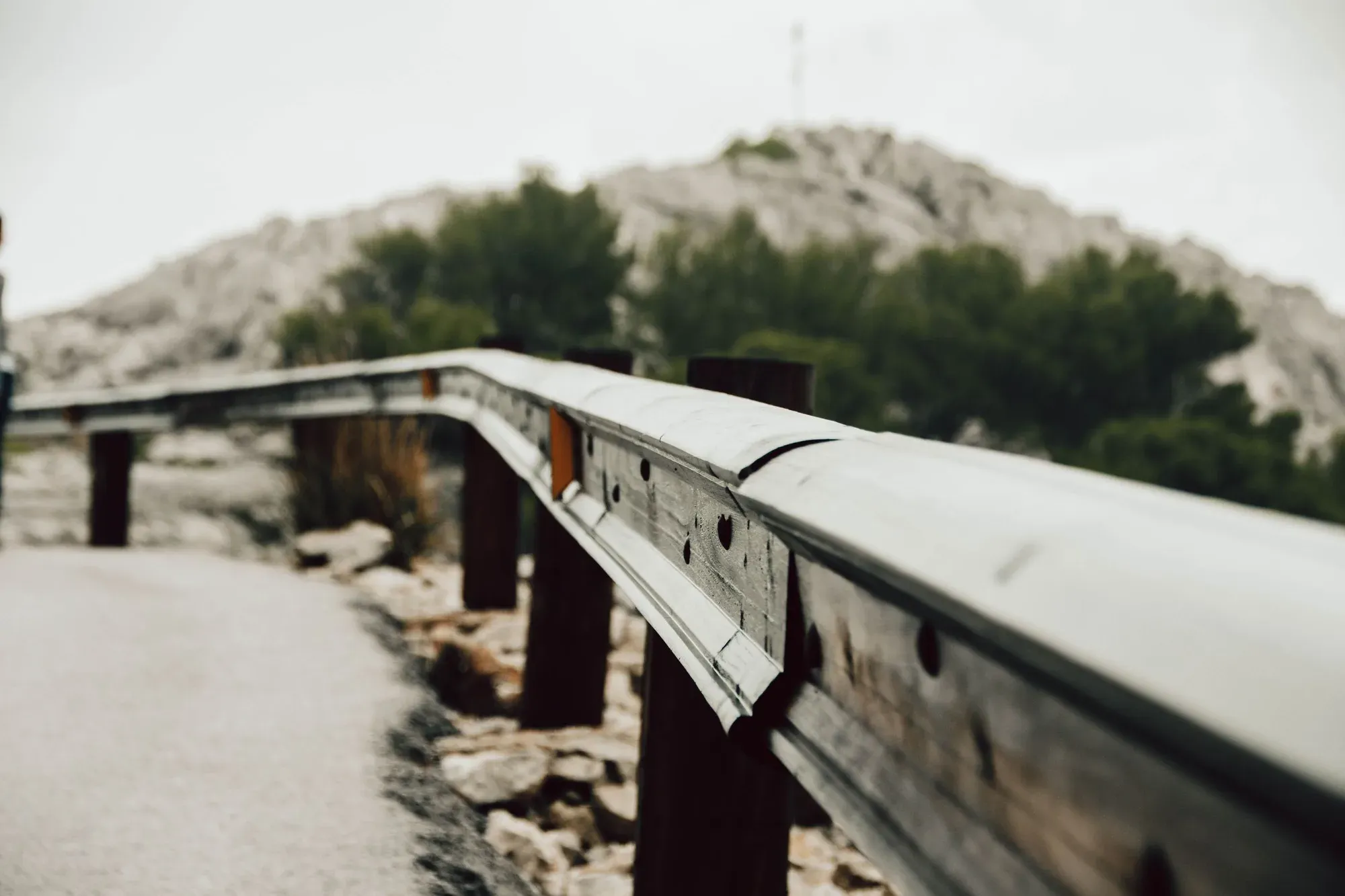

Guard Rails
W-beam and thrie-beam crash barrier to AASHTO M180
Galvanized W-beam and thrie-beam highway guard rail to AASHTO M180 in 2.67 mm and 3.43 mm, with posts, spacer blocks and fixings, for motorway, highway and bridge approaches.
SpecificationsHow it is made
From coil to consignment
Seven stages, every one of them inspected. Nothing leaves the mill without a certificate against the standard it was ordered to.
- 01 Raw material QC
Coil in, inspected
Prime soft mild steel coil is checked for gauge, width and surface before it is accepted onto the floor.
- 02 Strip tolerance
Slit to width
Coil is slit to the strip width the finished section calls for, so wall thickness lands on tolerance.
- 03 Cold reduction pass
Cold rolled
Strip is cold reduced to the required gauge and surface finish, tightening tolerance before it enters the tube mill.
- 04 High-frequency fusion
Formed and ERW welded
Cold-reduced strip is roll-formed and high-frequency welded into round, square or rectangular section on automatic lines.
- 05 Rotary sizing & saw
Sized, straightened, cut
Tube is sized to final outside diameter, straightened, and cut to length. Ends are faced and deburred.
- 06 Zinc & surface coat
Galvanized or finished
GI lines go through hot-dip galvanizing and threading to BS EN 10226. Black pipe is finished and coated.
- 07 100% Hydro & MTC
Tested and certified
Hydro test, dimensional check and weight check. Mill test certificate issued with the consignment.
Capacity
A cold-roll house that happens to make tube
Most tube mills buy their coil. We roll it. That single difference runs through everything else on this site: gauge tolerance, surface finish and forming behaviour are settled before the strip reaches a mill, not corrected afterwards.
- Coil to tube
- Rolled, slit and formed in-house
- Sch 10–80
- MS pipe schedules
- L · M · H
- GI grades to BS EN 10255
Quality & standards
Made to standard, checked before it ships
Every product in the range is manufactured against a published specification, and every consignment leaves with a mill test certificate.
- ISO 9001 Quality Management Systems Certified quality management system covering manufacturing, inspection and dispatch.
- ASTM A53 / ASME B36.10M Pipe, Steel, Black and Hot-Dipped, Zinc-Coated, Welded and Seamless Governs our MS pipe in Schedule 10, 20, 40 and 80, Grade A and Grade B.
- BS EN 10255:2004 Non-alloy steel tubes suitable for welding and threading Governs GI pipe in Grades L, M and H. Formerly BS 1387:1985.
- BS EN 10226:2004 Pipe threads where pressure-tight joints are made on the threads Governs the threading on our galvanized iron pipe.
Where we make it
Our plant in Sheikhupura
Unit 1 at 16-KM Lahore–Sheikhupura Road carries the cold rolling, slitting and tube lines on one site. Unit 2 and the head office sit on Ring Road near Khokhar Road, Badami Bagh, while the showroom at 8 Din Road, Badami Bagh, Misri Shah keeps the company on Lahore’s steel market.
16-KM Lahore–Sheikhupura Road
District Sheikhupura
Sheikhupura, Pakistan
Need a quotation?
Send us your sizes, grades and quantities and we will come back with a price and a lead time.
